Product Spec SheetUse the browser's print dialog to save this page as PDF.

Product Spec Sheet

Hebei Haihao Group Huadian High Pressure Pipe Fittings Co., Ltd.

Donglin, Mengcun County, Cangzhou City, Hebei Province, China

Generated on: 2026-05-13

Source URL: https://www.haihaohuadian.com/en/products/forged-flange-119

Flange

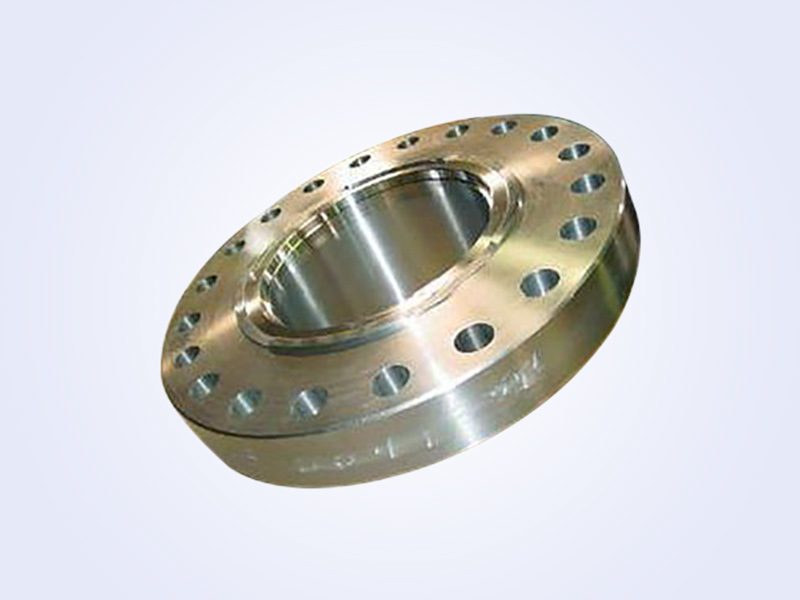

Forged Flange

Name: Hebei Haihao Group Huadian High Pressure Pipe Fittings Co., Ltd.
Address: Donglin Industrial Zone, Mengcun County, Cangzhou, Hebei, 061400, CN
Telephone: +86 132 9342 5333

Forged steel flanges — welding-neck, slip-on, socket-weld, threaded and blind — for high, medium and low pressure piping.

Category: Flange
Material / Standard: ASTM A105 / A182 / A350; carbon, alloy and stainless steel
Size range: 1/2" - 60" (DN15 - DN1500)
Pressure / Wall: Class 150 - Class 2500 / PN 6 - PN 420
Applications: Oil & gas, refinery and petrochemical plants, power generation, chemical and pharmaceutical, shipbuilding and offshore, pressure vessel and equipment connections.
Technical specs: Standards: ASME B16.5 / B16.47, MSS SP-44, EN 1092-1, GB/T 9112-9124, JIS B2220, DIN 2627-2638. Material: ASTM A105 / A182 / A350; carbon, alloy and stainless steel. Size range: 1/2" - 60" (DN15 - DN1500). Pressure: Class 150 - Class 2500 / PN 6 - PN 420. Faces: RF / FF / RTJ / Tongue-Groove / Male-Female. NDT: visual, dimensional, RT/UT/PT/MT and PMI on request.

Description

Hebei Haihao Group manufactures forged flanges in carbon, alloy and stainless steel from forged blanks, machined to ASME B16.5, B16.47, EN 1092-1, GB/T 9112-9124 and JIS / DIN equivalents. Suitable for both pipe-to-pipe and pipe-to-equipment connections including reducer-gear flanges.

Referenced standards

ASTM A105
Standard Specification for Carbon Steel Forgings for Piping Applications
ASTM International

Contact

Manufacturer: Hebei Haihao Group Huadian High Pressure Pipe Fittings Co., Ltd.
Mobile: +86 132 9342 5333
Email: haihaojituan@163.com
Website: www.haihaohuadian.com
