Description

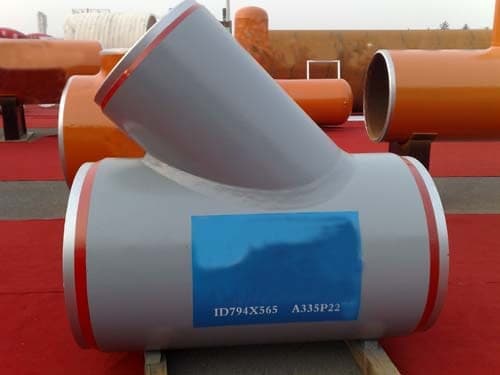

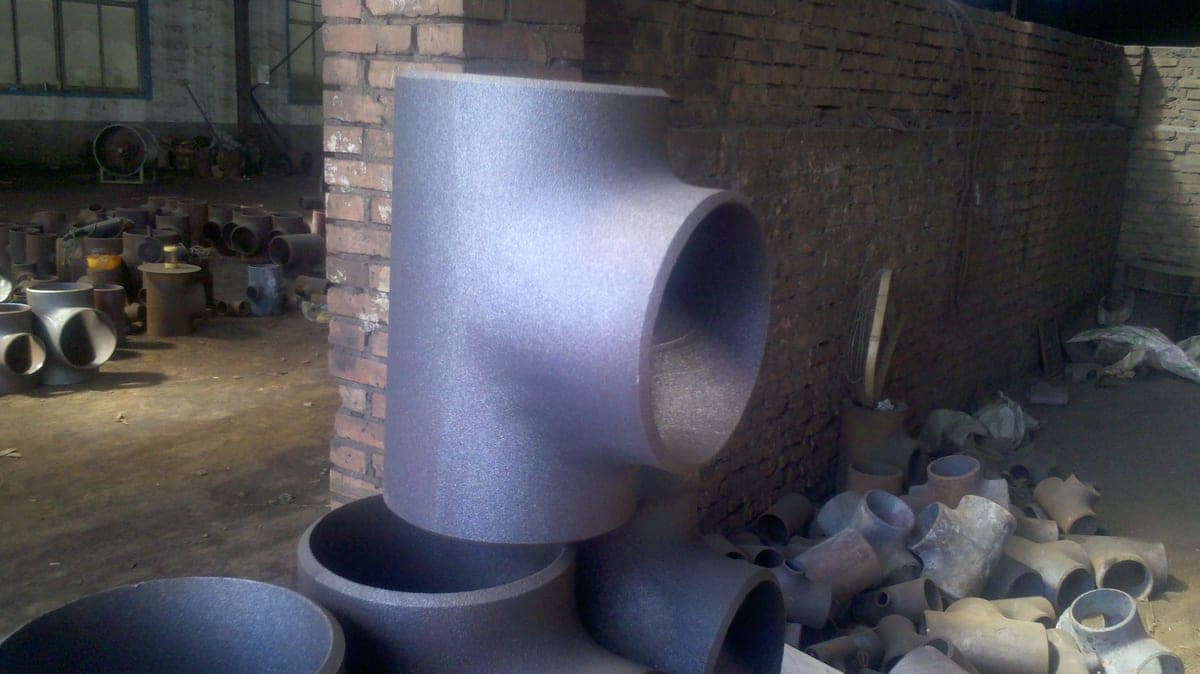

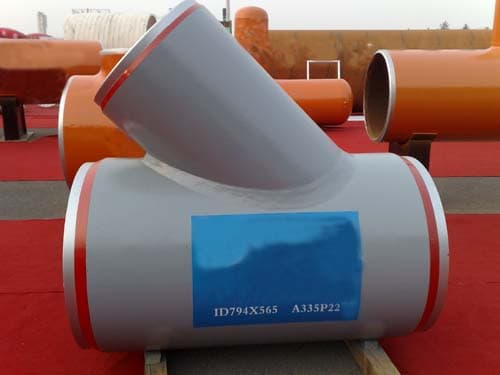

Tees and crosses are used for branch connections and pipe convergence, including equal tees, reducing tees, T-type and Y-type fittings. The product range includes hot forming, cold extrusion, forging, welding and casting processes.
- Material / Standard
- ASTM A-234, ASME/ANSI B16.9
- Size range
- 1/2" - 42" listed in dimensional tables
- Pressure / Wall
- Standard Weight, Extra Strong
- Applications
- Petrochemical, oil and gas, LPG, fertilizer, power plant, nuclear power, shipbuilding, paper, pharmaceutical, food hygiene and municipal projects.
- Technical specs
- Available specifications include materials such as 10#, 20#, Q235A, 20G, 16Mn, ASTM A234, ASTM A105 and ASTM A403. Equal or reducing configuration, outside diameter, wall thickness and pressure class are confirmed by drawing or RFQ.
Standards and Materials
The following supports product selection and RFQ communication. Final requirements follow drawings, standards and purchase documents.
MaterialFITTINGS
ASTM/ASME A/SA 234WPB / WPC / WP1 / WP11 / WP12 / WP22 / WP5 / WP9
MSS SP75 / ASTM A860WPHY42 / WPHY52 / WPHY60
ASTM/ASME A/SA 420WPL6
ScopeTee and related piping components, final specification by drawing or RFQ
